COLORCELLS


Randomly modifies the color of rectangular cells of an image

Download Script

last modified: December 15, 2018



USAGE: colorcells [-n numcells ] [-c cellsize] [-p percent] [-s seeds] [-t thickness] [-d diameters] infile outfile
USAGE: colorcells [-h|help]

-n ... numcells .... number of cells in width and height; comma separated pair of
.................... integers; default="8x8"; used if no cellsize provided
-c ... cellsize .... dimensions of cells; WxH; "x" separated pair of integers;
.................... default is to use numcells; takes precedent over numcells
-p ... percent ..... percent coverage of colored cells; 0<=integer<=100; default=50
-s ... seeds ....... random seeds; comma separate pair of integers; default="200,300"
-t ... thickness ... thickness of white grid lines; integer>0; default=0 (no grid);
.................... odd values will be rounded up to even values
-d ... diameters ... diameters of elliptical mask expressed as percent of width and
.................... height of image; comma separate pair of integers; default="70,70"

PURPOSE: Randomly modifies the color of rectangular cells of an image.

DESCRIPTION: COLORCELLS randomly modifies the color of rectangular cells of an image. The cells may be masked by an ellipse so that the outside of the affected cells are white. Only some percentage of the cells will be modified in color.

ARGUMENTS:

-n numcells ... NUMCELLS is the number of cells in width and height. Values are comma separated pair of positive integers. The default="8x8". This option is used if no cellsize are provided.

-c cellsize ... CELLSIZE is the dimensions of the cells expressed as an "x" separated pair of positive integers (WxH). The default is to use numcells. This option takes precedent over numcells.

-p percent ... PERCENT coverage of colored cells. Values are 0<=integer<=100. The \ default=50.

-s seeds ... random number SEEDS. Values are a comma separate pair of positive integers. The default="200,300".

-t thickness ... THICKNESS of white grid lines. Values are integer>=0. The default=0 (no grid). Odd values will be rounded up to even values.

-d diameters ... DIAMETERS of an elliptical mask expressed as a percent of the width and height of the image. Values are a comma separate pair of integers. The default="70,70". If the value is 0 (0,0), then no mask will be used.

NOTE: The script will be slower the more cells that are created.

REFERENCE: http://www.photoshopessentials.com/photo-effects/color-grid-photo-display-effect/

CAVEAT: No guarantee that this script will work on all platforms, nor that trapping of inconsistent parameters is complete and foolproof. Use At Your Own Risk.


EXAMPLES


Example 1

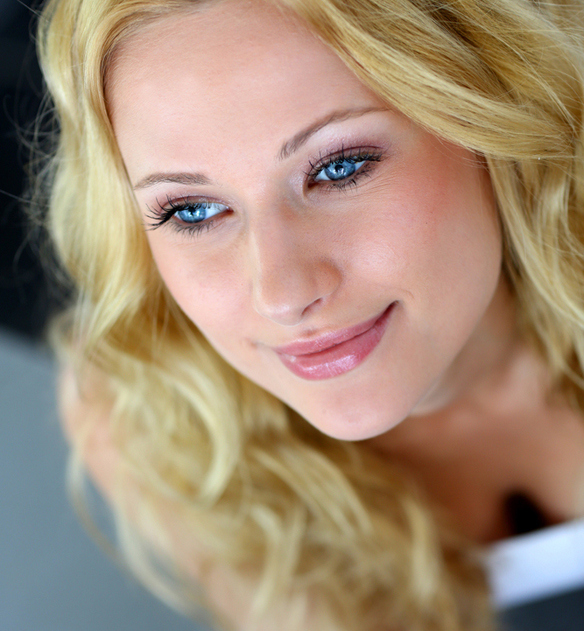

Original Image
(source)

Arguments:

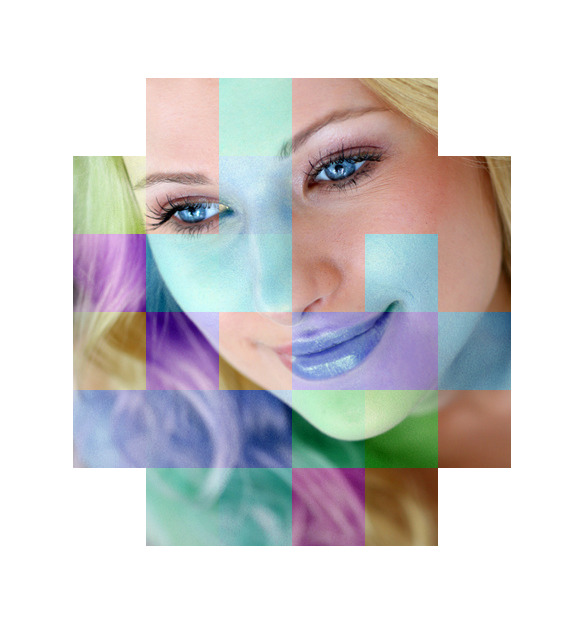

-n 8,8 -d 70,70
(defaults)



Arguments:

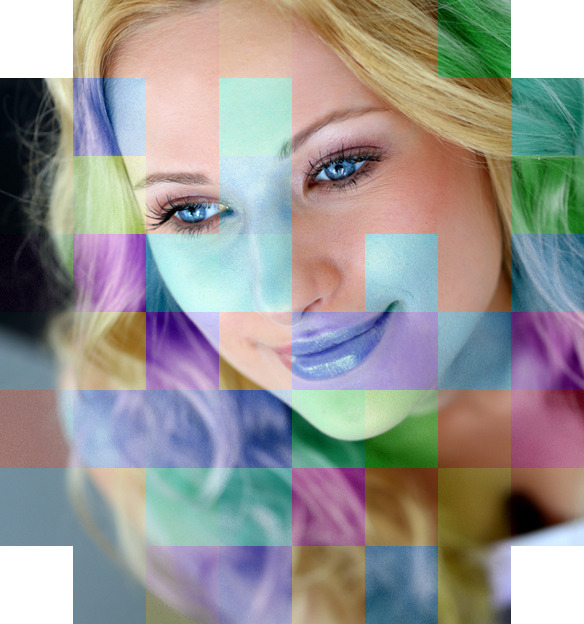

-n 8,8 -d 100,100



Arguments:

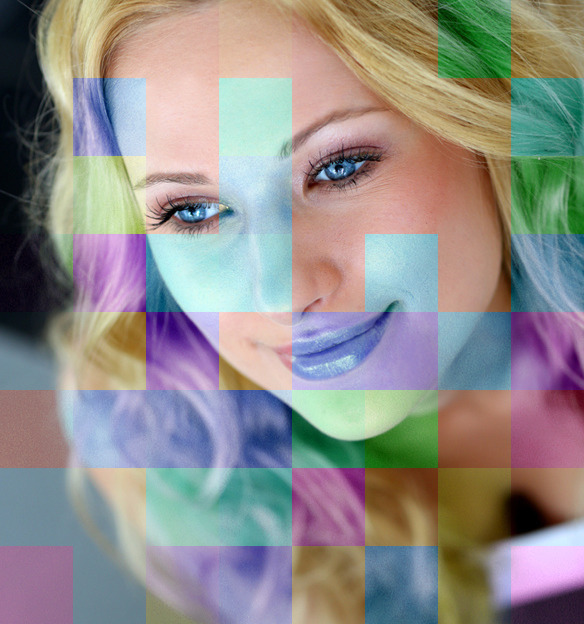

-n 8,8 -d 150,150
or
-n 8,8 -d 0,0



Arguments:

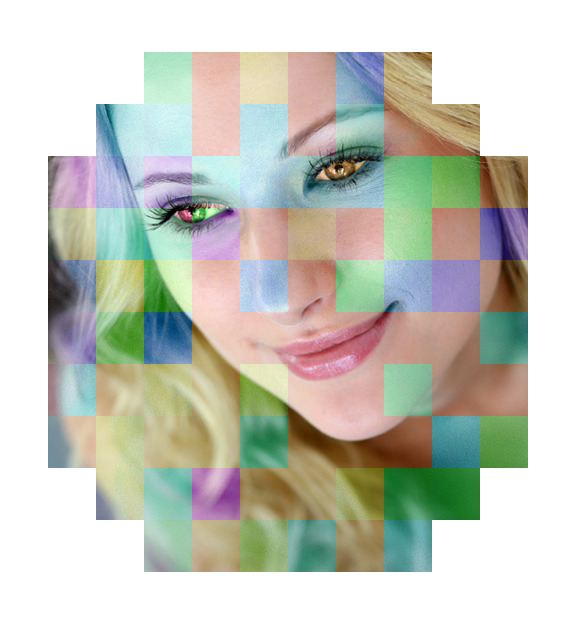

-n 12,12 -d 80,80



Arguments:

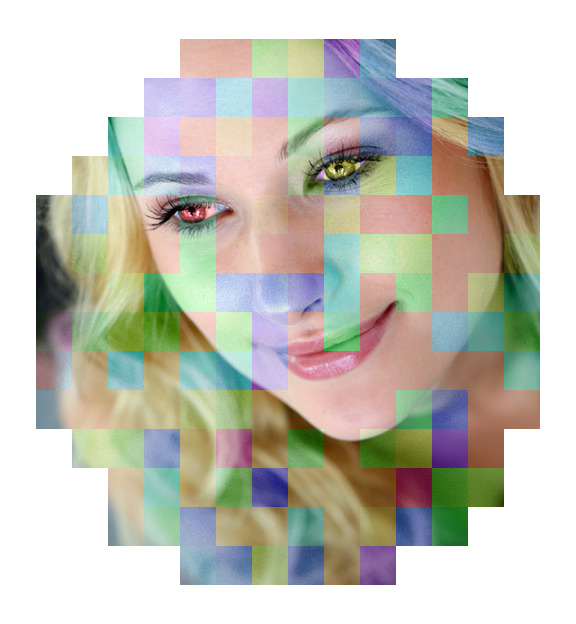

-n 16,16 -d 80,80



Arguments:

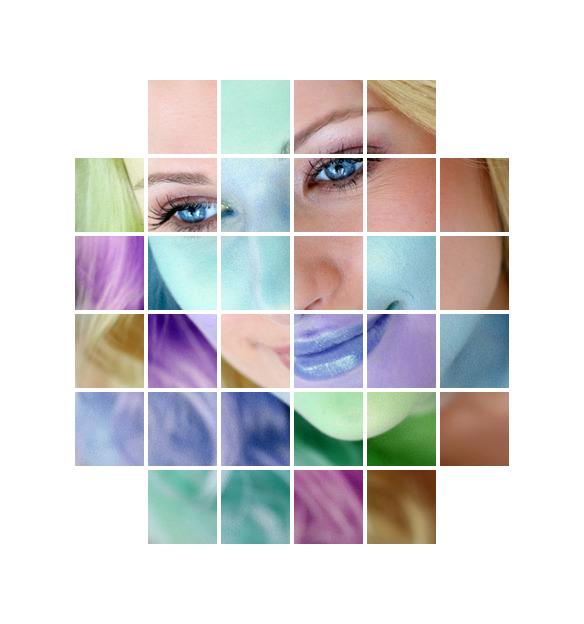

-n 8,8 -d 70,70 -t 4



What the script does is as follows:

  • Reads the input image and computes size related arguments
  • Tiles the imaged into cell size parts
  • Optionally creates and tiles an elliptical mask and
    makes white any mask cell that is partially white
  • Combines the tiles and mask tiles and modulates the hue randomly
  • Recombines the tiles into a full image
  • Writes the output

This is equivalent to the following IM commands when no mask is used:

  • WxH=`convert -ping $tmpA1 -format "%wx%h" info:`
  • ww=`echo $WxH | cut -dx -f1`
  • hh=`echo $WxH | cut -dx -f2`
  • coverage=`convert xc: -format "%[fx:(100-$percent)/100]" info:`
  • if [ "$cellsize" != "" ]; then
    cellw=`echo "$cellsize" | cut -dx -f1`
    cellh=`echo "$cellsize" | cut -dx -f2`
    numx=`convert xc: -format "%[fx:floor($ww/$cellw)]" info:`
    numy=`convert xc: -format "%[fx:floor($hh/$cellh)]" info:`
    num=$((numx*numy))
    cropw=`convert xc: -format "%[fx:$numx*$cellw]" info:`
    croph=`convert xc: -format "%[fx:$numy*$cellh]" info:`
    else
    numx=`echo "$numcells" | cut -d, -f1`
    numy=`echo "$numcells" | cut -d, -f2`
    num=$((numx*numy))
    cellw=`convert xc: -format "%[fx:floor($ww/$numx)]" info:`
    cellh=`convert xc: -format "%[fx:floor($hh/$numy)]" info:`
    cropw=`convert xc: -format "%[fx:$numx*floor($ww/$numx)]" info:`
    croph=`convert xc: -format "%[fx:$numy*floor($hh/$numy)]" info:`
    fi
  • convert $tmpA1 -crop ${cropw}x${croph} +repage -crop ${cellw}x${cellh} $tmpI1
  • diameterx=`echo "$diameters" | cut -d, -f1`
  • diametery=`echo "$diameters" | cut -d, -f2`
  • seed1=`echo "$seeds" | cut -d, -f1`
  • seed2=`echo "$seeds" | cut -d, -f2`
  • (
    for ((i=0; i seed1=$((i+seed1))
    rr=`convert xc: -seed $seed1 -format "%[fx:random()]" info:`
    factor=`convert xc: -format "%[fx:$rr>$coverage?$rr:0]" info:`
    seed2=$((2*i+seed2))
    hue=`convert xc: -seed $seed2 -format "%[fx:round(100+$factor*random()*200)]" info:`
    echo >&2 "factor=$factor; hue=$hue;"
    convert $tmpI1[$i] -modulate 100,100,$hue miff:-
    done
    ) | convert - -background none -layers merge +repage "$outfile"
